Product Description:
|
|
|
Applications:
|
|
|
■Conductor：0.3 - 250 sq mm
|
|
|
■Apply to Household appliance、lumination&Lighting
|
|
■Tinned,annealed,stranded or solid copper conductor.
|
|
metallurgy&Headlamp、electric machines、tempurature
|
|
■Silicone Rubber insulation
|
|
|
sensor、Military series、metallurgy Chemical series、
|
|
■Rated temperature:200℃.Rated voltage:600volts
|
|
Motor cars&Ships、Electrical installation
|
|
■Uniform thickness of wire to ensure easy stripping and cutting.
|
應用：
|
|
|
|
■Passes UL VW-1&CUL FT1 vertical flame test
|
|
■適用于家用電器、照明燈具、電子設備、溫度傳感器、
|
|
■Top coated conductor is available
|
|
|
航天、航空、軍工產品、冶金化工、汽車船船、
|
|
說明：
|
|
|
|
|
電力安裝等連接線。
|
|
|
■導體：0.3---250平方
|
|
|
|
Construction:
|
|
|
■導體使用單股或絞線裸銅或鍍錫銅
|
|
|
構造：
|
|
|
|
■硅橡膠絕緣
|
|
|
|
|
|
|
■額定溫度：200℃額定電壓：600Volts
|
|
|
|
■使用標準厚度，易剝，截?cái)嗳菀住?/span>
|
|
|
|
■可通過UL VW-1 及 CUL FT1 ，垂直燃燒測試
|
|
|
■可使用先絞后鍍（TC）為導體
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
UL Style& Cul Type
|
Conductor
|
Insulation
Thickness
|
Overall
Diameter
|
Standard Put-up
|
Conductor
Resistance at 20℃
|
|
AWG
|
No/mm
|
mm
|
mm
|
Ft/coil
|
M/Coil
|
Ω/KM
|
UL3512
CUL AWM I A
（Stranded)
|
22
|
7/0.25
|
0.76
|
2.30
|
2000
|
610
|
59.4
|
|
17/0.16
|
0.76
|
2.30
|
2000
|
610
|
|
20
|
7/0.31
|
0.76
|
2.50
|
2000
|
610
|
36.70
|
|
21/0.178
|
0.76
|
2.50
|
2000
|
610
|
|
18
|
7/0.39
|
0.76
|
2.71
|
2000
|
610
|
23.20
|
|
34/0.178
|
0.76
|
2.71
|
2000
|
610
|
|
16
|
7/0.50
|
0.76
|
3.05
|
1000
|
305
|
14.60
|
|
26/0.25
|
0.76
|
3.05
|
1000
|
305
|
|
14
|
37/0.26
|
0.76
|
3.42
|
1000
|
305
|
8.96
|
|
41/0.25
|
0.76
|
3.42
|
1000
|
305
|
|
12
|
45/0.32
|
0.76
|
4.00
|
1000
|
305
|
5.64
|
|
65/0.25
|
0.76
|
4.00
|
1000
|
305
|
|
以上數據僅供參考，不作為正式的設計依據，產品規格以雙方確認的規格書承認為準！最終解釋權歸穩暢電子制品有限公司所有。
|

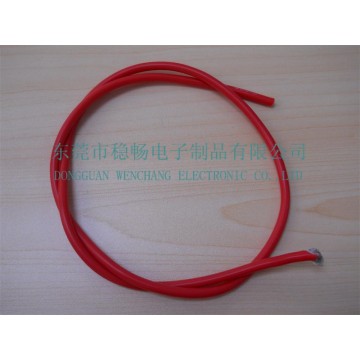

點擊圖片查看原圖
