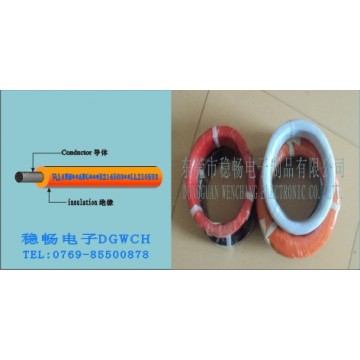

Product Description:
|
|
■Tinned, annealed, stranded or solid copper conductor.
|
|
■XL-PE insulation.
|
|
■Rated temperature: 105℃. Rated voltage: 30volts
|
|
■Uniform thickness of wire to ensure easy stripping and cutting.
|
|
■Passes UL VW-1&CUL FT1/FT2 vertical flame test or horizontal flame test.
|
|
■Executive Standard:UL758 UL1581 CSA22.2.
|
|
說明：
|
|
■導體使用單股或絞線裸銅或鍍錫銅。
|
|
■無鹵照射環保PE絕緣。
|
|
■額定溫度：105℃ 額定電壓：30Volts。
|
|
■使用標準厚度，易剝，截?cái)嗳菀住?/span>
|
|
■可通過ULVW-1及CUL FT1/FT2，垂直燃燒測試或水平燃燒測試。
|
|
■執行標準:UL758 UL1581 CSA22.2。
|
|
Applications:
|
|
■For general purpose internal wiring of electronic and electrical equipment.
|
|
應用：
|
|
■用于電子及電器設備內部配線。
|
UL Style
& CSA Type
|
Conductor
導體
|
Insulation
Thickness
絕緣厚度
|
Overall
Diameter
完成外徑
|
Standard Put-up
標準長度
|
Conductor
Resistance at 20℃導體電阻
|
|
線號
|
線數/線徑
|
英制
|
公制
|
|
AWG
|
No/mm
|
mm
|
mm
|
Ft/coil
|
M/Coil
|
Ω/KM
|
UL3302
（Stranded)
絞線
|
30
|
7/0.10
|
0.2
|
0.70
|
2000
|
610
|
381.00
|
|
28
|
7/0.127
|
0.80
|
239.00
|
|
26
|
7/0.16
|
0.90
|
150.00
|
|
24
|
11/0.16
|
1.00
|
94.20
|
|
22
|
17/0.16
|
1.20
|
59.40
|
|
20
|
21/0.178
|
1.40
|
36.70
|
|
18
|
34/0.178
|
1.70
|
23.20
|
|
16
|
26/0.25
|
2.00
|
14.60
|
UL3302
（Top-coated)
先絞后鍍
|
26
|
7/0.16
|
0.90
|
150.00
|
|
24
|
7/0.20
|
1.00
|
94.20
|
|
22
|
7/0.25
|
1.20
|
59.40
|
UL3302
（Solid)
單股
|
26
|
1/0.404
|
0.90
|
150.00
|
|
24
|
1/0.511
|
1.00
|
94.20
|
|
22
|
1/0.643
|
1.20
|
59.40
|
|
20
|
1/0.813
|
1.40
|
36.70
|
|
18
|
1/1.024
|
1.40
|
23.20
|
|
以上數據僅供參考，不作為正式的設計依據，產品規格以雙方確認的規格書承認為準！最終解釋權規穩暢電子制品有限公司所有
|
